Gear Pump Filler – SmartFill-GP

Categories: ,

Gear Pump Filler – SmartFill-GP

Categories: ,

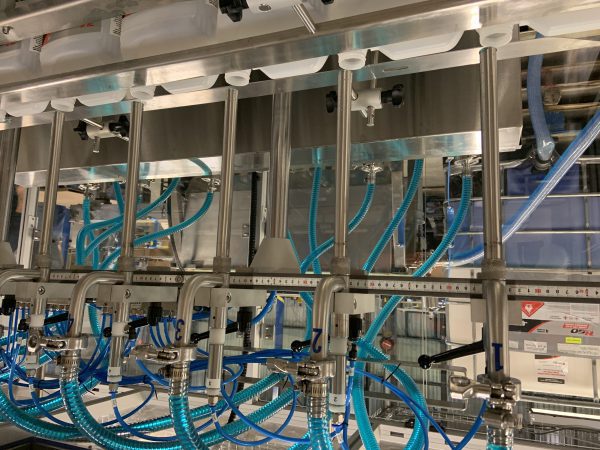

The SmartFill liquid fillers use the gear pump technology for liquid and semi-viscous products. The SmartFill adapts to all quantities of products. The machine is equipped with shutoff nozzles for clean filling. The SmartFill can be made for 4 to 12 nozzles. The equipment can be easily and toolless dismantling and all the parts in contact with products are made in stainless steel 316L.

Request a quote

Features

  • Modular liquid filler for 4 to 12 nozzles.
  • Robust freestanding aluminum and stainless steel base (adjustable leg allowing leveling).
  • Pneumatic filling nozzle to close the end of the nozzle after dosing ensuring clean filling (shutoff nozzle).
  • Format A: rotary gear pump with a capacity of 12 liters per minute.
  • Format B: rotary gear pump with a capacity of 24 liters per minute.
  • All the parts in contact with the product is made in stainless steel 316L.
  • Easy and toolless dismantling.
  • PLC-HMI Omron with interface to save parameters for different formats (settings).
  • Servomotor controlling the number of pump rotations and the speed of the revolution.
  • Servomotor controlling the cycle, in other words, the rise and fall of the filling nozzles, minimizing the production of foam.
  • Standard conveyor SS304 or washdown type of 8 to 12 ft long, integrated on the machine.
  • Filling precision of ± 0,5%.
  • Speed of up to 150 cpm (depending on the format and viscosity of the product).

Packaging Type

Types d'emballages
  • Glass bottles or containers
  • Plastic bottles or containers
  • Pump bottles
  • Spray bottles
Types d'emballages
  • Glass bottles or containers
  • Plastic bottles or containers
  • Pump bottles
  • Spray bottles
Types d'emballages
  • Glass bottles or containers
  • Plastic bottles or containers
  • Pump bottles
  • Spray bottles

Options

  • Protective enclosure with front and rear access door protecting the operator (open doors sensor).
  • Raised 100L axiliary tank with level control (tri clamp piping).
  • Toxic fume hood (explosion proof).
