Standard top-bottom labeler – DuoLabel

Category: Model: DuoLabel

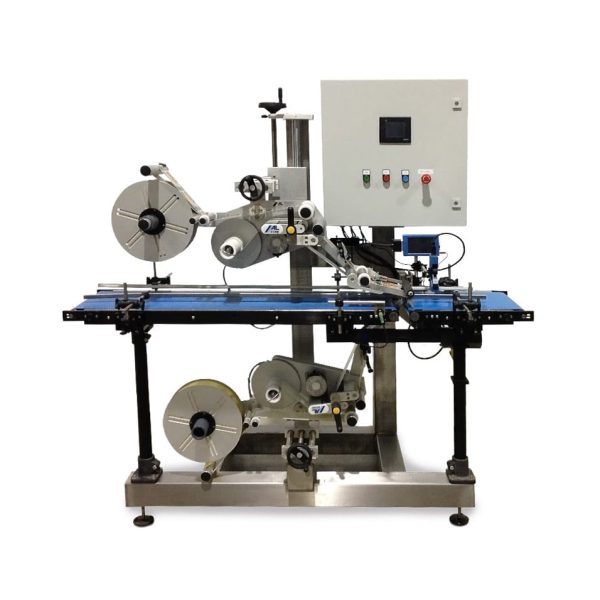

Standard top-bottom labeler – DuoLabel

Category: Model: DuoLabel

Automatically driven, the DuoLabel labeler applies 2 labels on any type of products. The machine works with any 2-label containers (top and bottom). We also use Italy-imported high-end application heads as well as print and apply heads. With our 30m/min heads, the labeler reaches up to 100 ppm. The DuoLabel is perfect for your low to medium-speed packaging line.

Request a quote

Features

  • Model: DuoLabel
  • 120V/1Ph/60Hz/90PSI
  • Speed: 100 ppm
  • Label height: 100 mm
  • Programmable controller with 178 mm (7 in) screen
  • Stainless steel control panel
  • Ethernet port for remote diagnostic
  • Dimensions: 2,565 x 1,483 x 1,380 mm
  • 2-parts conveyor for bottom label affixing

Packaging Type

Types d'emballages
  • Cardboard boxes
  • Polyethylene bags
  • Trays
Types d'emballages
  • Cardboard boxes
  • Polyethylene bags
  • Trays
Types d'emballages
  • Cardboard boxes
  • Polyethylene bags
  • Trays
Types d'emballages
  • Cardboard boxes
  • Polyethylene bags
  • Trays

Options

  • Coder: ink jet, heat transfer, laser
  • Vision system
  • Print and apply head
  • Prism station
  • Conveyor belt type
  • Additional side head
  • Container guide
  • Higher label (200 mm or 300 mm)
  • Clear label sensor
  • Longer or larger conveyor
  • Automated position adjustment
  • Positioning system
  • 2-belt conveyor

Other Specifications

  • Adjustable speed
  • 3-line and angle adjustable application head position
  • Opaque label sensor
  • Winding station
  • Speed synchronizing
  • Fast and toolless adjustment
  • Screen-integrated recipes and operations manual
